APC40 CTRL

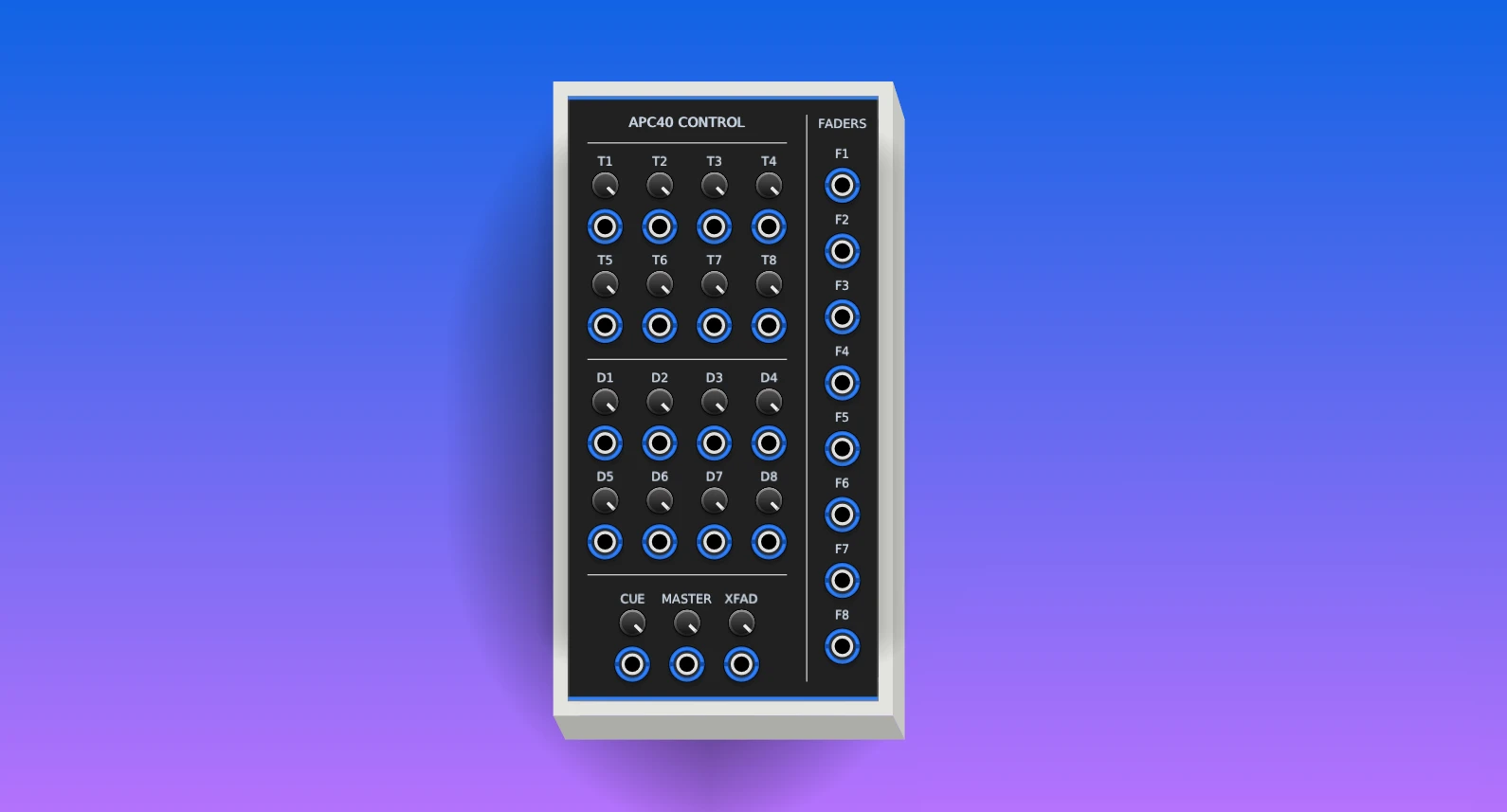

Akai APC40 MIDI-to-CV Bridge
APC40 CTRL converts the continuous controls of the Akai APC40 into CV outputs inside VCV Rack, without manually remapping every knob or fader.
It captures Track Control, Device Control, Cue, Master, Crossfader and the eight channel faders.
Each main control includes an attenuverter so the voltage can be scaled or inverted before it reaches the patch.
Control map
Track Controls T1-T8
CC 48-55 on MIDI channel 1, with one attenuverter per output.
Device Knobs D1-D8
CC 16-23 on MIDI channel 1, ready for direct modulation.
Cue, Master and Crossfader
CC 47, CC 14 and CC 11 with independent CV outputs.
8 Channel Faders
All use CC 7, but on MIDI channels 1-8 for eight separate outputs.
Quick manual
Output range
Controls output 0-10 V before scaling or inversion.
Channels
Knobs listen on channel 1; the fader column uses channels 1-8.
Typical use
Performance control for mixes, sends, morphs, filters or macros in Rack.
